Vertical manual testing machine

Vertical manual testing machine applicable to all kind of finished products, semi-finished products, and the test such as push-pull test of the materials, insertion extract force test, destructive test.

And vertical manual testing machine can combine with all kind of racks and the jigs into a small testing machine for different purposes.

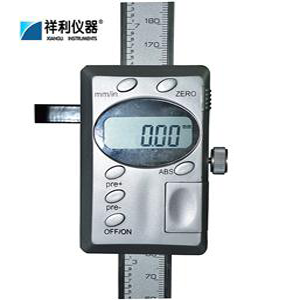

Also equipped with digital calipers to show the specimen deformation, measure the relationship between specimen deformation and force.

Vertical manual testing machine rack using the trapezoidal screw drives, and has the characteristic manual operation, simple and stable, position limits.

HC-SX series figure explicit push pull force gauge is a type of economical push pull force. Small size, high accuracy and effective cost are its characteristic.

★ Size：220mm*200mm*530mm

★ Rated load：0-2N……500N

★ Max load：280mm

★ Weight：8.8kg

1. LED double figures with backlit display.

2. USB data interface, support hot-plug.

3. Set the max and min deviation, and free to select the alarm mode within limits and external limit.

4. The screen can be 180°flipped.

5. Three kind of units N、kgf、lbf can be free conversion, and also can bespoke other units such as gf、tonf、KN etc.

6. Vertical manual testing machine with peak keeping function, the peak automatically discharge and time discharge can be set freely.

7. Vertical manual testing machine can permanently store 10 groups test reports and automatically calculate our the peak, valley, average and etc in the test report.

8. The power-saving functions shutdown automatically while no operation and automatically backlight.

9. Use the specified software on the PC can store, deliver, review and print the test curve data.

10. And vertical manual testing machine can combine with all kind of racks to achieve many kind of test.
