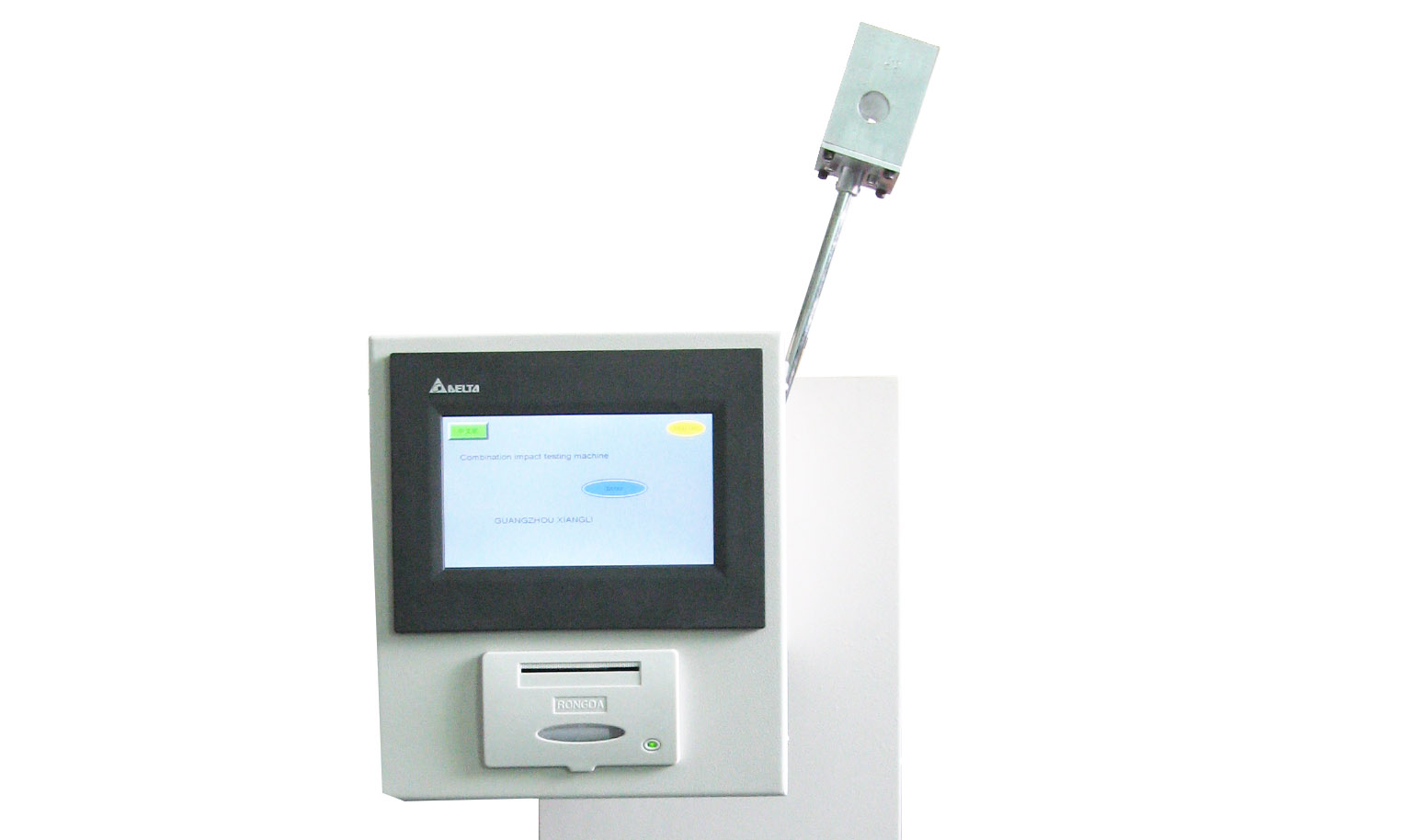

Touch control Izod impact testing machine

Brand :XIANGLI

Product origin :China

Delivery time :7 days

Supply capacity :1000

Touch control Izod impact testing machine can do the impact test supplying for scientific organization, academy, all levels of product checking place, material produce factory etc.
Touch control operation, automatic printing testing reports, can also be stored through a USB flash drive.
Test accuracy and reputability are very good.
It can test a variety of plastic .

Application

The technical parameters of this series of touch screen combination impact testing machines fully comply with the requirements of ISO 179, ISO 180, GB 1043, GB/T1843, JB/T 8762, JB/T 8761 and other standards. It is an impact testing instrument with simple structure, convenient operation and reliable performance.

Touch control izod impact testing machine is used to measure the impact toughness of plastic pipes and nonmetal materials such as horniness plastic, buildup nylon, glass steel, pottery, founding stone, plastic wiring, insulated material etc. Touch control izod impact testing machine can do the impact test supplying for scientific organization, academy, all levels of product checking place, material produce factory etc.

Product advantage

1. It can be used as both Charpy impact testing machine and Izod impact testing machine.

2. It is control by the touch panel.

3. It can calculate the results directly.

4. It can print out the results.

5. Structure and performance

This testing machine consists of a display control table, fuselage, impact pendulum, sample support, pendulum positioning mechanism and feet.

5.1 Machine body - It consists of the fuselage, pendulum shaft, level bubble, etc. The level should be adjusted according to the level bubble before the test.

5.2 Test support cantilever beam jaw seat.

5.2.1 Cantilever beam specimen support: consists of fixed jaws, movable jaws and operating lever.

5.3 Hammer release mechanism: used to fix the impact pendulum at 160° position and release the hammer for impact.

Product parameter

1. Touch control izod impact testing machine: Max impact energy is 22J

2. Error:<±0.5% when the impact energy is biger than 5J.

3. Size: 500×400×800

4. Weight: 100kg

5. Environment temperature: 15~35℃

	XJU-5.5	XJU-22
Velocity at impact	3.5m/s
Impact energy	2.75J 5.5J	11J 22J
Angle of the elevation	160°
Radius of the pendulum	R=0.8±0.2mm
The distance from the pendulum to the gag	22±0.2MM
Included angle of impact	30°±1°
Energy loss	1%	0.5%

6. Others:

Izod sample	Length （L）	Width （Y）	Thickness （X）
1	80±2	10.0±0.2	4.0 ± 0.2
2	63.5±2	12.7±0.2	12.7 ± 0.5
3	63.5±2	12.7±0.2	6.4 ± 0.3
4	63.5±2	12.7±0.2	3 ± 0.2
